Ultracompact Displacement Sensor

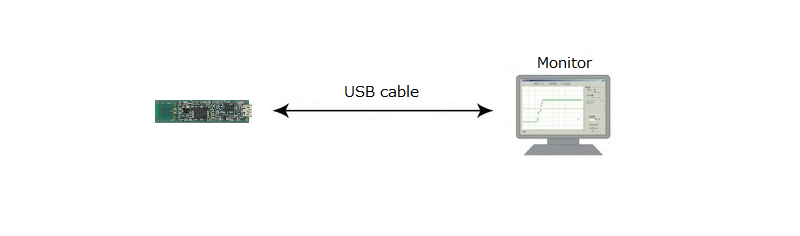

 DS2001 evaluation  module includes an example of a PCB sensor coil and a

 microcontroller which is used to interface the DS2001 to a host computer.

 A Micro-USB port is mounted on the sensor board.


◆Host platform Requirements

 The DS2001EVM supports:

  ・Windows 8.1

  ・Windows 10


◆Detection part

  φ 8 mm (coil diameter)

  It is possible to connect other coils by removing φ8 coil.
