Ultracompact Displacement Sensor




Supply Voltage          3.3 V
Current consumption       Max. 10 mA
Substrate            FR4 substrate
Detection part          φ 8 mm (coil diameter)
Input signal           Measurement and clock signals
Output signal          Count value (serial signal)
Operating temperature      0℃  to 60℃
Operating humidity        45 to 85% RH (no condensation)
Object to be detected       Electric Conductor

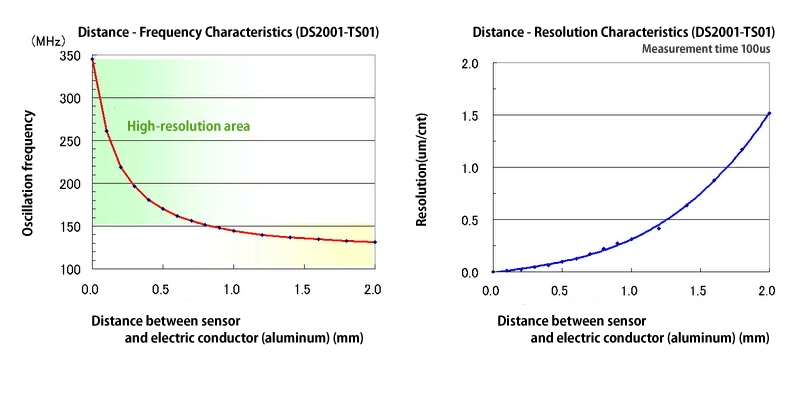

Temperature characteristics    Approx. 2.4 cnt/℃  (for open)
Application           Displacement sensors, distance sensors, proximity sensors, and pressure sensors

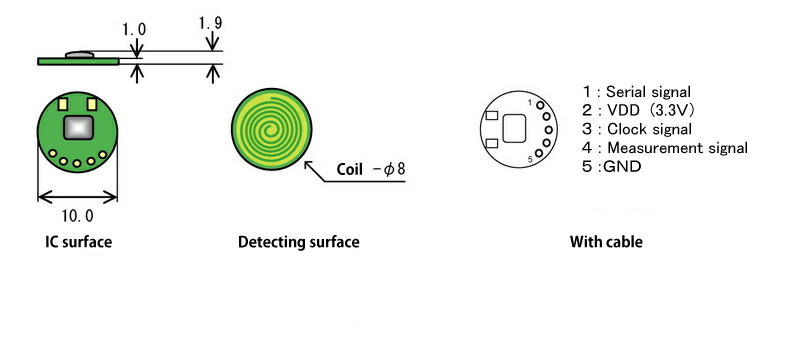

Outline and Pin Assignment
