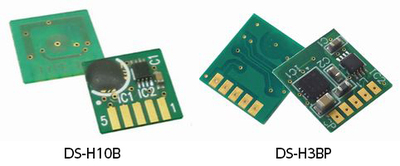

Ultracompact Displacement Sensor




Supply Voltage          3.3 V
Current consumption        Max. 10 mA
Substrate             FR4 substrate
Detection part          φ3mm(coil diameter)
Input signal           Measurement and clock signals
Output signal           Count value (serial signal)
Operating temperature       0℃  to 60℃
Operating humidity        45 to 85% RH (no condensation)
Object to be detected       Electric conductor
Temperature characteristics    Approx. 2.4 cnt/℃  (for open)
Application           Displacement sensors, distance sensors, proximity sensors, and pressure sensors

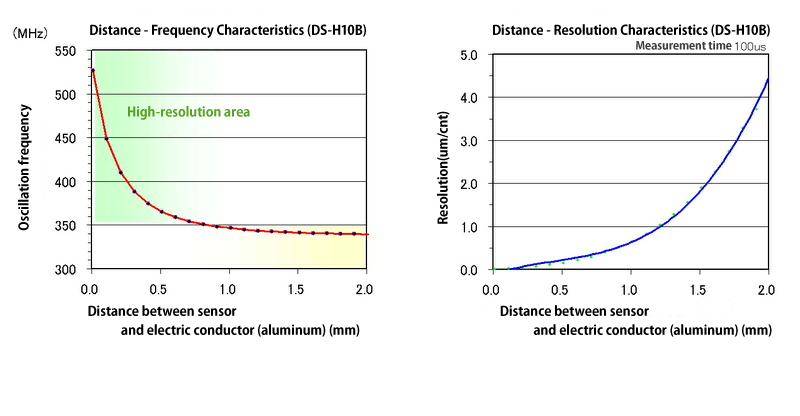

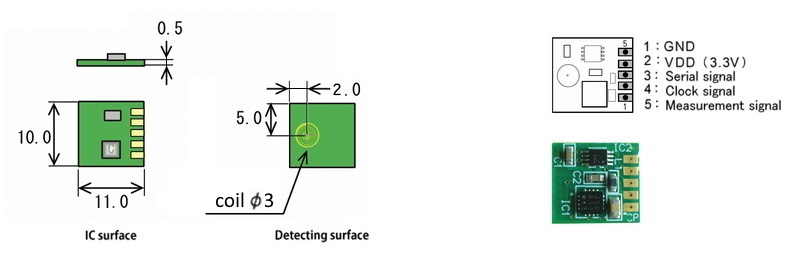

Outline and Pin Assignment (DS-H10B)
