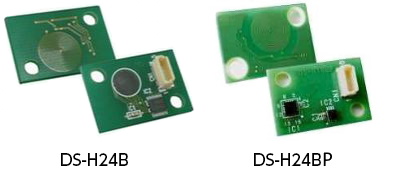

Ultracompact Displacement Sensor

DS-H24B / DS-H24BP



Supply Voltage          3.3 V
Current consumption           Max. 10 mA
Substrate             FR4 substrate
Detection part           φ 10 mm (coil diameter)
Input signal            Measurement and clock signals
Output signal            Count value (serial signal)
Operating temperature         -10 to 70℃
Operating humidity          10 to 90% RH (no condensation)
Object to be detected        Electric conductor
Temperature characteristics      Approx. 1.5 cnt/℃ (for no metal)
Application                Displacement sensors, distance sensors, proximity sensors, and pressure sensors

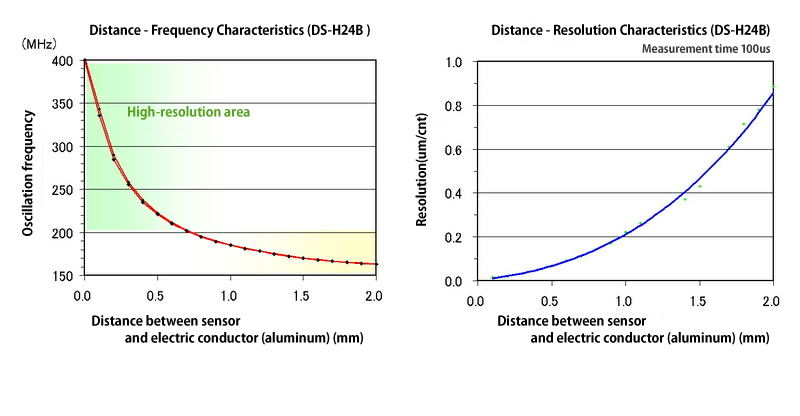

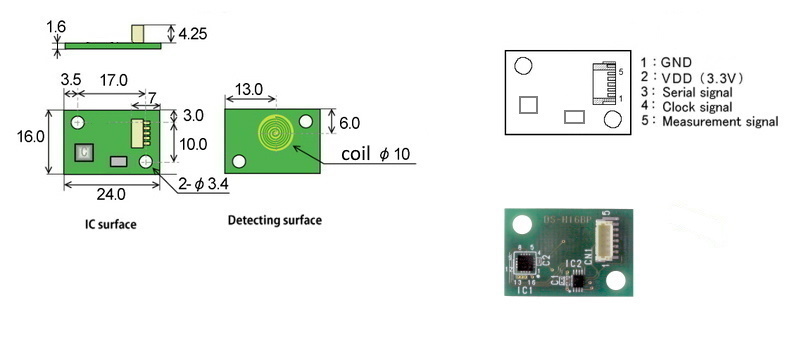

Outline and Pin Assignment (DS-H24BP)

Wire-to-board connector is mounted.
